Y系列壓力表產品介紹
一、產品概述
Y系列壓力表是工業領域廣泛應用的精密測量儀器，包含基礎型壓力表、耐震型、電接點型和法蘭式四大類別。全系列產品采用不銹鋼外殼與高彈性敏感元件，通過精密制造工藝確保長期穩定性，可滿足不同工況環境下的壓力監測需求。
二、產品分類及特點
-

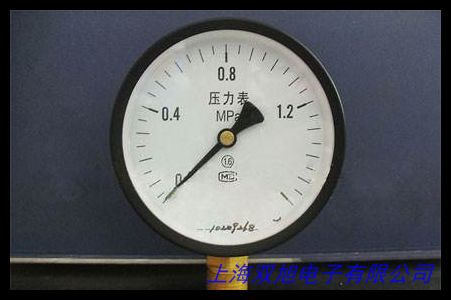

壓力表（Pressure Gauge）
基礎型壓力表采用全密封結構設計，表盤標注清晰的雙刻度單位（MPa/psi），配備防濺保護裝置。彈性元件經特殊處理，具備良好的溫度補償性能，適用于常規液體或氣體介質的靜態壓力測量，在暖通空調、水處理系統等領域表現優異。
-
耐震壓力表（Vibration-Resistant Pressure Gauge）
創新緩沖結構有效吸收機械振動能量，內部填充阻尼油配合緩沖彈簧設計，確保在運輸車輛、動力機組等高頻振動場景中保持指針穩定。雙層防爆玻璃表蒙與加固殼體可承受瞬時壓力沖擊，特別適用于工程機械、船舶動力系統等移動設備。
-
電接點壓力表（Electrical Contact Pressure Gauge）
集成可調節式磁控開關系統，通過指針位置觸發電路通斷，具備兩組獨立控制觸點。接觸系統采用銀合金材質確保低電阻導通，支持自動啟�？刂苹驁缶δ�。標配IP54防護等級，廣泛應用于液壓控制系統、恒壓供水設備等需要電氣聯動的工業場景。
-

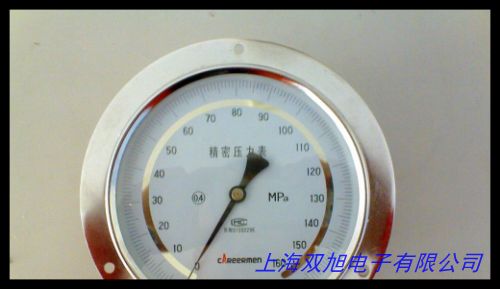

法蘭式壓力表（Flange-Mounted Pressure Gauge）
配備標準法蘭連接接口（可選DN25/DN40規格），直接安裝于管道或設備接口，有效隔離高溫介質對測量機構的影響。導壓腔體采用全焊接結構，配置脈沖阻尼裝置，特別適合食品加工、化工反應釜等需要衛生連接或腐蝕性介質的壓力監控。
三、技術優勢
• 全系產品選用316L不銹鋼承壓部件，有效抵抗介質腐蝕
• 表殼經多層靜電噴涂處理，適應-40℃~80℃環境溫度
• 測量機構配備過載保護裝置，確保超壓工況下的結構完整性
• 指針系統采用寶石軸承支撐，降低機械摩擦帶來的測量誤差
四、應用領域
該系列產品已成功應用于石油化工設備、工業鍋爐系統、壓縮空氣站、制冷機組等場景，為流體系統的壓力監控提供可靠保障。通過模塊化設計，可根據客戶需求提供表徑50mm至150mm的多種規格選擇，支持定制特殊量程范圍和接口形式。
Y Series Pressure Gauge Product Introduction
I. Product Overview
The Y Series pressure gauges encompass four specialized variants: standard pressure gauge, vibration-resistant type, electrical contact type, and flange-mounted models. Manufactured with stainless steel casing and high-elasticity sensing elements, this product line delivers reliable pressure monitoring solutions across diverse industrial environments through precision engineering.
II. Product Categories & Features
-
Pressure Gauge
The standard model features hermetic construction with dual-scale dials (MPa/psi) and splash-proof protector. Temperature-compensated elastic elements ensure accurate static pressure measurement for liquids/gases, widely adopted in HVAC systems and water treatment facilities.
-
Vibration-Resistant Pressure Gauge
Equipped with shock-absorbing structure and silicone-oil filled movement, this variant maintains stable indication under continuous vibration. Reinforced case and laminated safety glass withstand mechanical impacts, making it ideal for mobile equipment like construction machinery and marine power systems.
-
Electrical Contact Pressure Gauge
Incorporates adjustable magnetic switch system with two independent contact sets. Silver-alloy contacts guarantee low-resistance circuit control, enabling automatic pump control and alarm functions. The IP54-rated model suits hydraulic systems and pressure-regulated water supply equipment requiring electrical automation.
-
Flange-Mounted Pressure Gauge
Standard flange connections (DN25/DN40 optional) allow direct pipeline mounting, isolating sensitive mechanisms from thermal stress. Fully welded pressure chamber with pulsation damper adapts to corrosive media in chemical reactors and sanitary process lines for food/pharmaceutical industries.
III. Technical Advantages
• 316L stainless steel wetted parts resist chemical corrosion
• Multi-layer powder coating ensures durability in -40℃~80℃ environments
• Overload protection mechanism safeguards internal components
• Jewel-bearing movement minimizes friction-induced errors
IV. Application Scope
This series has been implemented in petrochemical plants, industrial boilers, compressed air stations, and refrigeration units. Modular design supports customization including dial sizes (50mm-150mm), pressure ranges, and connection types to meet specific operational requirements.
